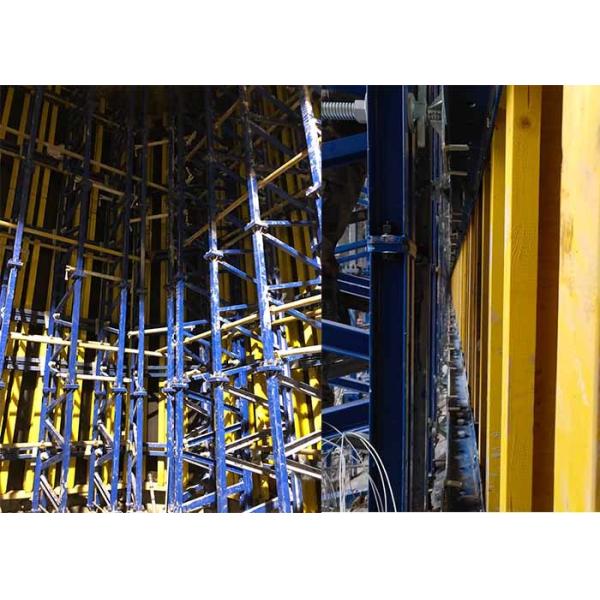

Manual Operation One Sided Concrete Formwork

Single-Sided Wall Formwork Designed for manual operation with Light Truss

Product definition

For underground retaining wall and lining construction, crane is difficult to be set in postion to lift formwork. On the other hand, Fomwork and brackets need to take big fresh oncrete pressure and transfer them to foundation and top beam. Manual operation single sided wall system is specially designed for this tough task. All standard components of formwork and truss could be handy operated, the whole formwork system could be erected and dismantled in jobsite with manpower. Different casting height requirment is easy to be solved with modular truss element . This manual operation system is an innovated system for single sided wall concreting under non-crane situation. Timber beam large size panel will be selected to work integrity with the truss bracket.

Elements

• Modular handy peration truss unit

• Manual erection timber beam formwork system

• High strength snake like tie rod

Technical Specification

• Handy lift truss standard length is 1.20m

• Max casting height can reach to 7.0m

• Max concrete pressure is 40kN/m²

• Adjust space between truss unit and timber beam, different pressure could be taken by the system

• Max loadability of snake-like tie rod is 250kN

Application

Delivery process

one sided wall formwork

one sided concrete formwork

Manual One Sided Concrete Formwork
